PV+ESS Integrated System
- 5.12/6.4kWh 4000+ cycles Maximum support for 1500W load

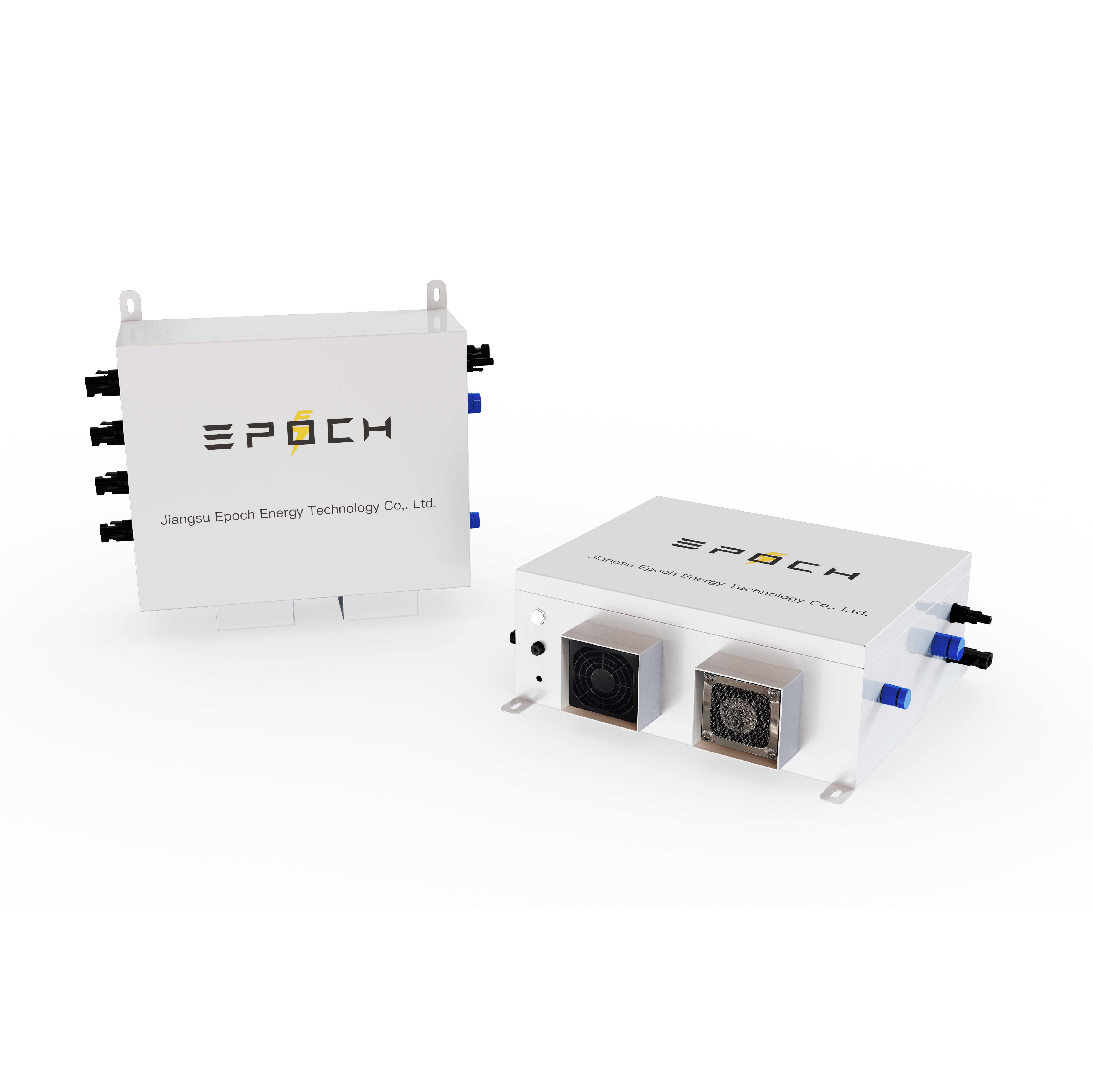

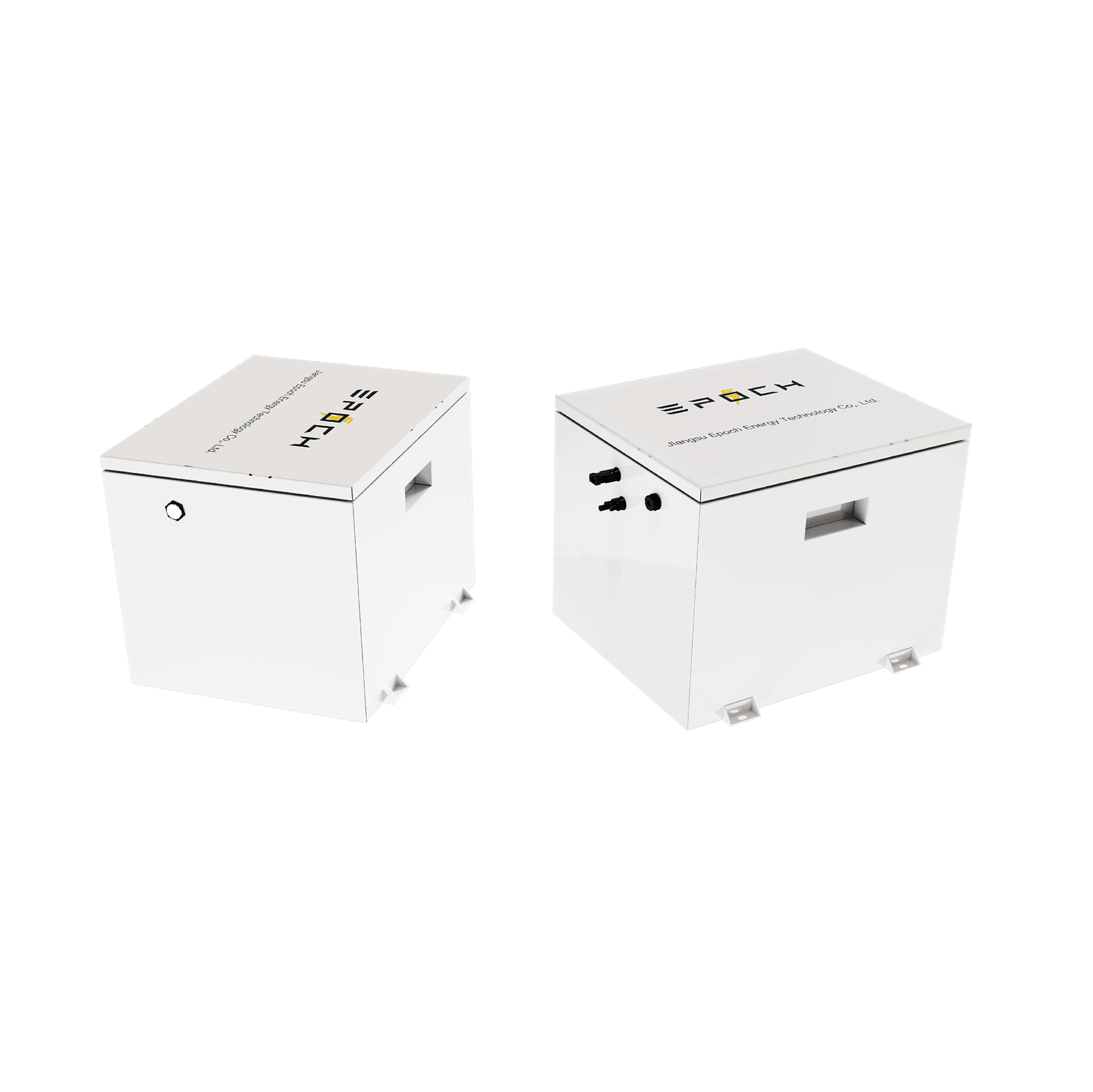

The PE1S-E2 is a low-voltage PV-storage product designed for outdoor off-grid scenarios. It features a compact and portable design, a 125Ah large-capacity battery, a 60% volume reduction, and a 25% weight reduction. Its square box design saves time and effort during installation. The product supports a maximum load of 1500W, and its power consumption duration can be remotely controlled according to customer needs. The control box and energy storage box are designed separately, making the entire
Product features
-
Advanced Protection
It has an IP65 ingress protection rating, uses lithium batteries for a high safety factor, and features a modular design with a robust structure. -
Intelligent Adjustment
It monitors battery health in real time and allows users to set suitable operating hours. -
Convenient Installation
Installation is time-saving and effortless. The entire system is compact, with convenient handling and fixing. -
Air Cooling
It adopts air-cooled heat dissipation, enabling operation at high temperatures and intelligent cooling. -
Long-Term Reliability
It is equipped with a 125Ah large-capacity lithium iron phosphate battery, offering over 4,000 cycles and backed by a 5-year warranty. -
AC And DC Integration
It supports the expansion of mains access and intelligent AC/DC switching. -
Ultra-High Efficiency
Equipped with an efficient MPPT controller, it delivers high power generation efficiency. Even when some photovoltaic panels are on the back (and not exposed to sunlight), the overall power generation
Technical Parameters
-
Product Name EH-MPPT Max.Input Power 2800W Input Voltage Range 0-70V Max.Input Current Per Channel 40A
Max.Output Power 1500W Operating Voltage Range 44.8-58.4V Max.Output Current 30A Communication CAN/RS485
-
Product Name PondPump Power 5000/6000 Battery type LiFePO4 Stored electrical energy 5.12 /6.4kWh Cycle-index ≥4000+ cycles,5-year warranty
IP rating IP65 Weight ≈55/65 kg Dimensions (W*D*H) 500*425*250/425*350*340 mm Communication protocol CAN/Bluetooth/RS485/UART

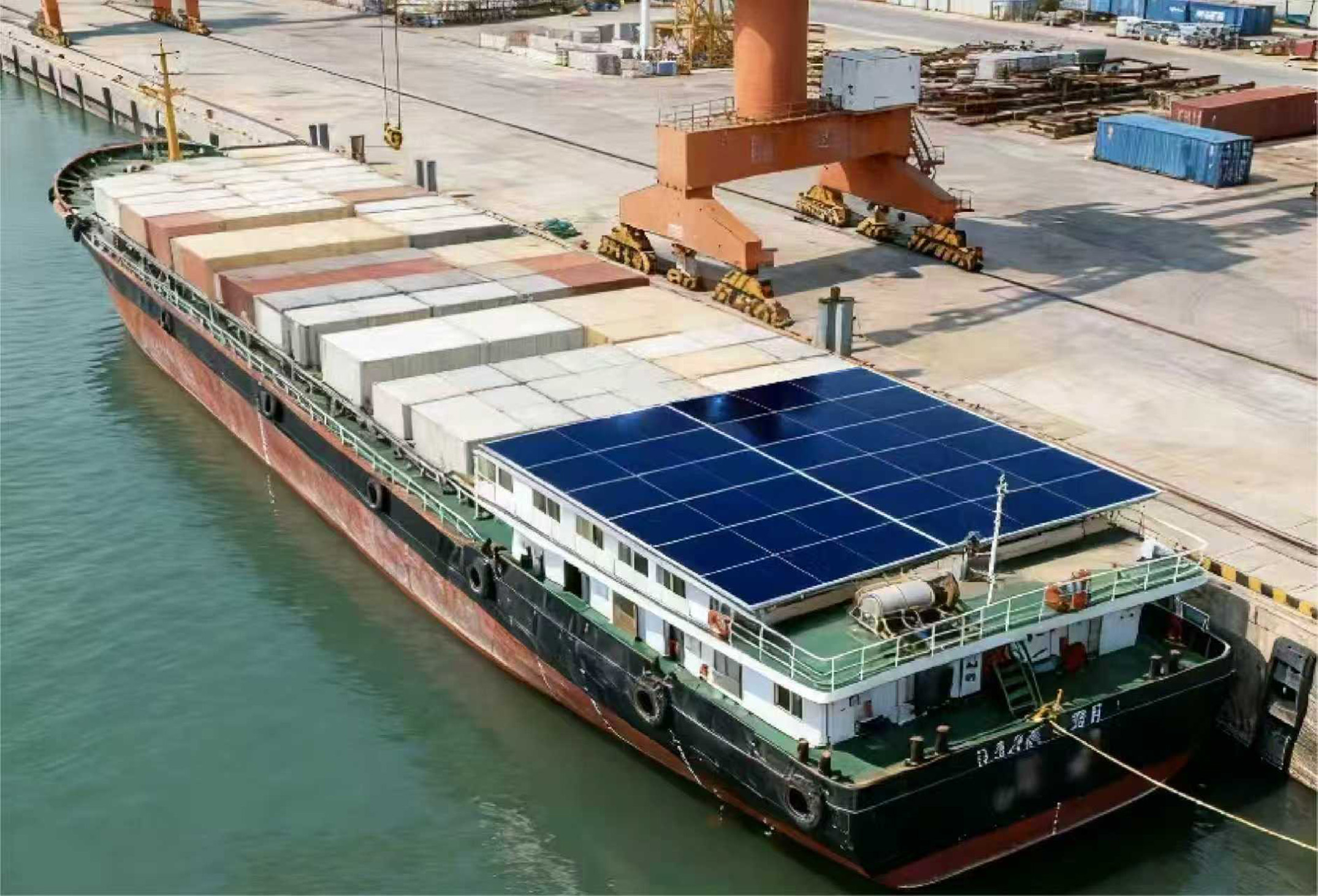

Marine Green Energy
It provides shore power supply for cargo ships when berthed at the quay, enabling worry-free berthing and on-demand start-stop functionality.

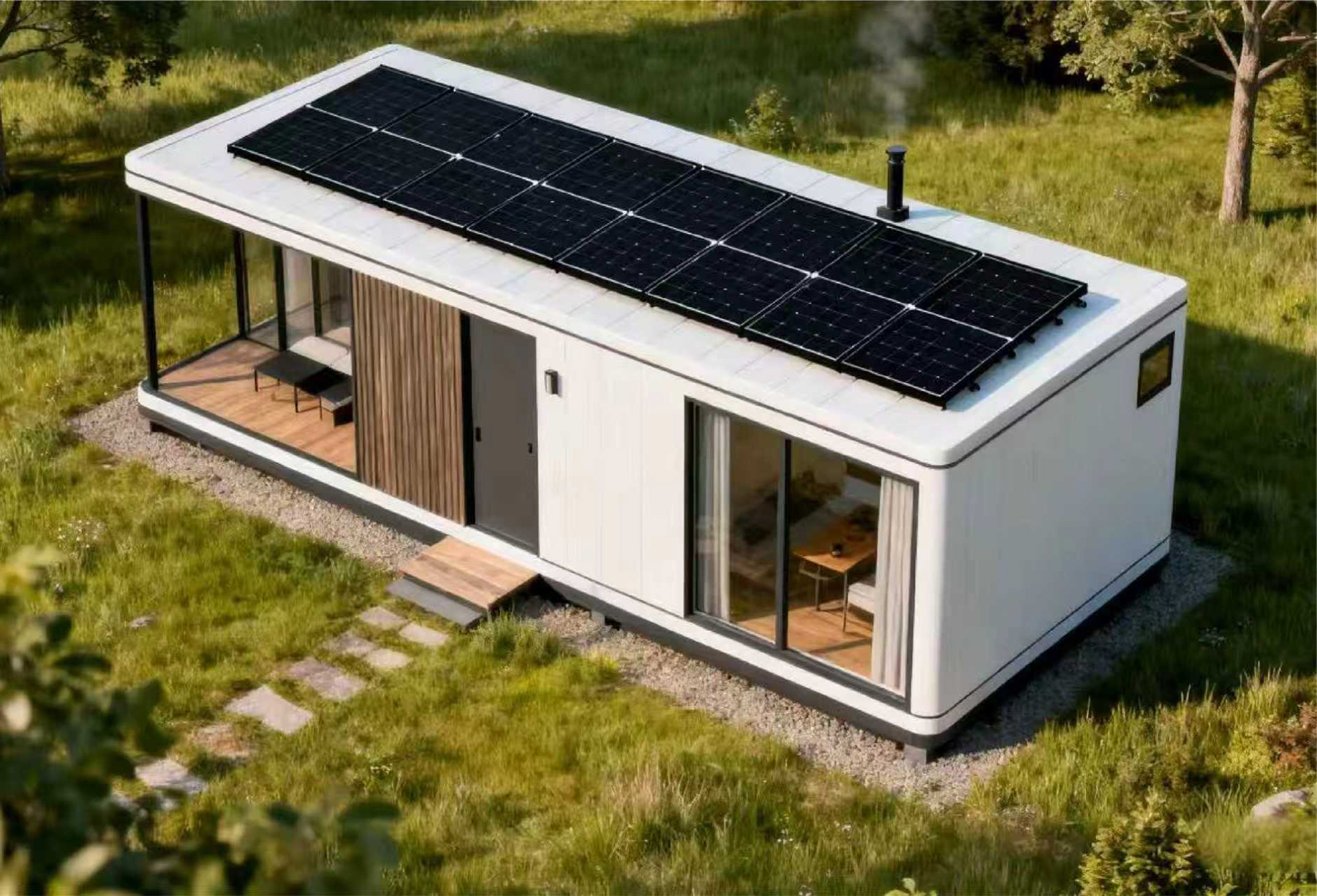

New Energy Space Capsule
It maintains a stable operating state with continuous power supply, while being zero-carbon and environmentally friendly.

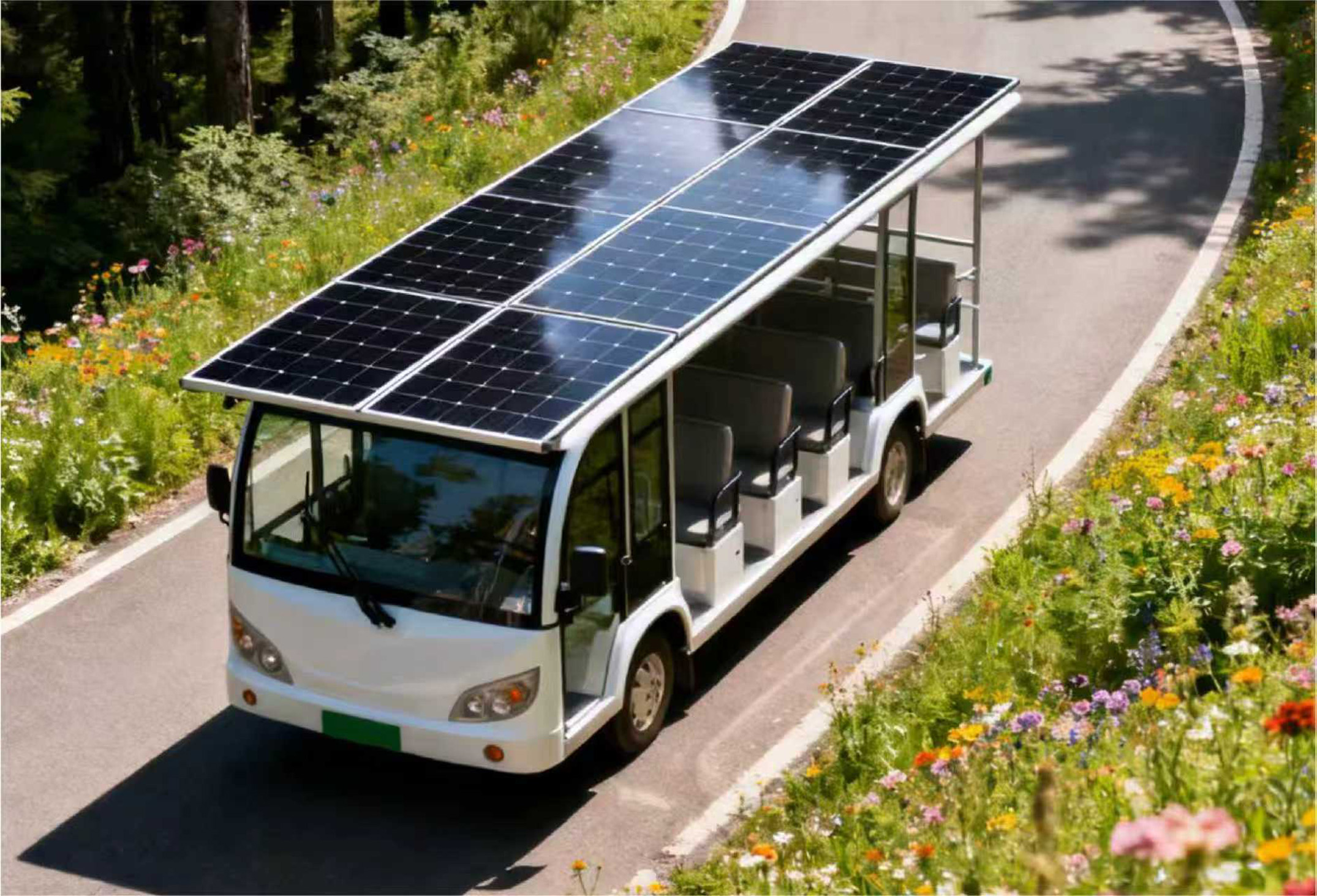

Zero-Carbon Tourist Vehicle
It provides worry-free electric endurance for travel within scenic areas, enabling zero-carbon sightseeing and a green, eco-friendly experience.

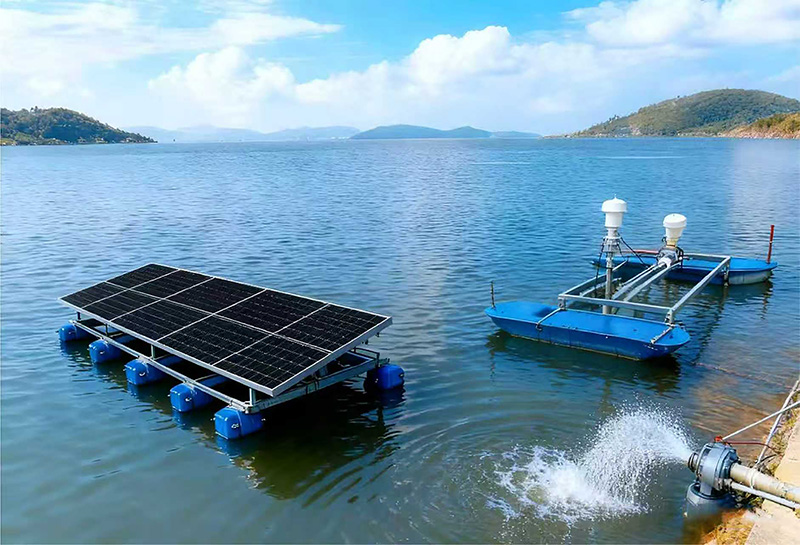

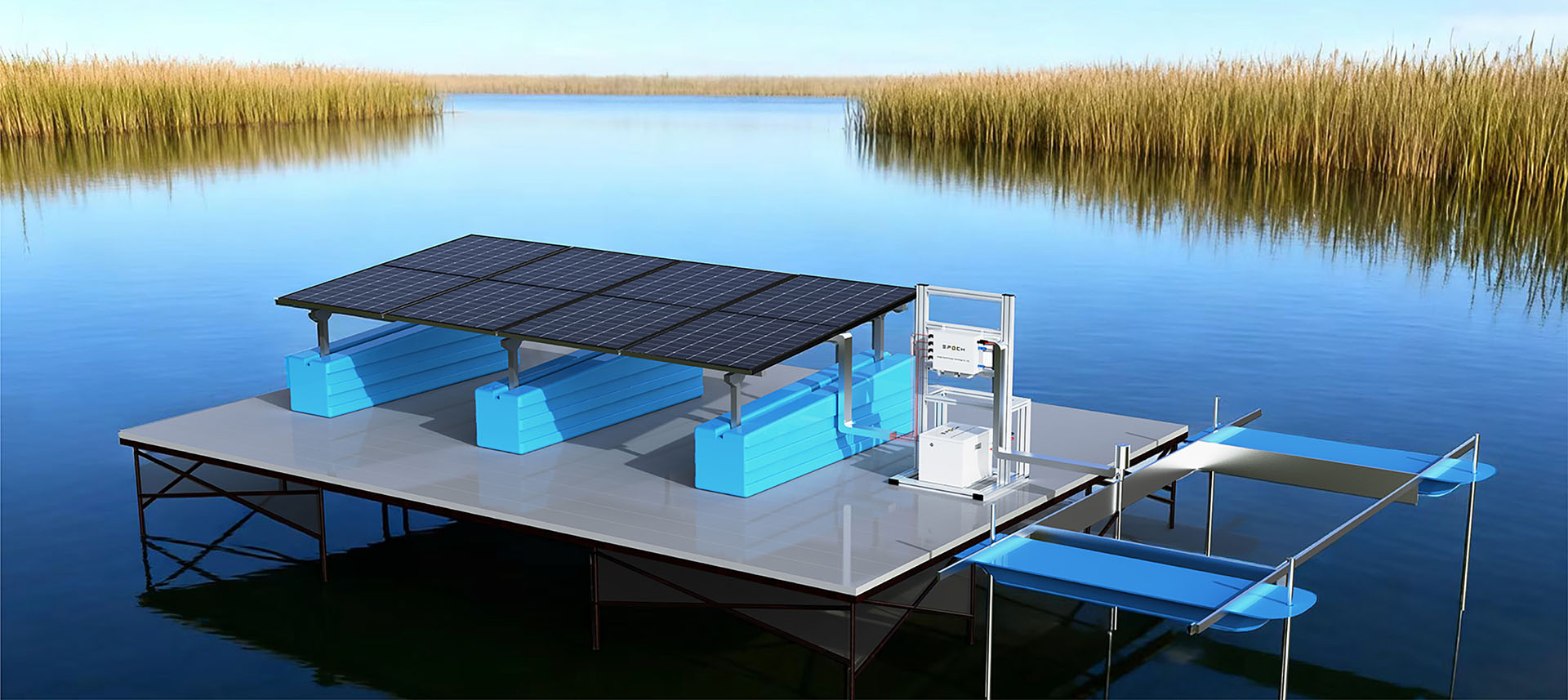

Fishery Green Enerengy
For outdoor riverside scenarios without mains electricity, it enables 2-second power switching—ensuring worry-free backup power and long-lasting endurance.

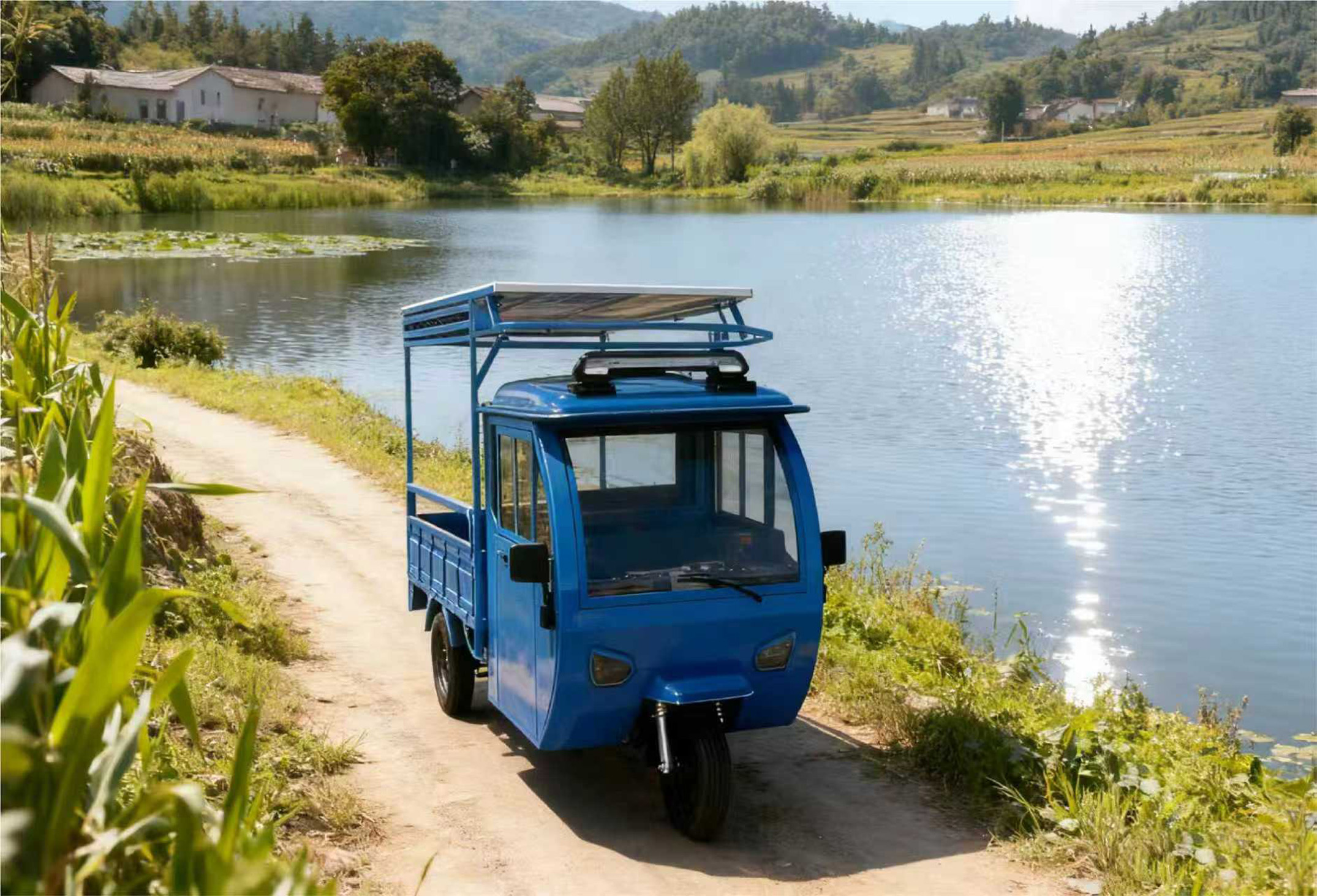

New Energy Tricycle
Equipped with a new energy system for road driving,it ensures worry-free power shortage and worry-free endurance

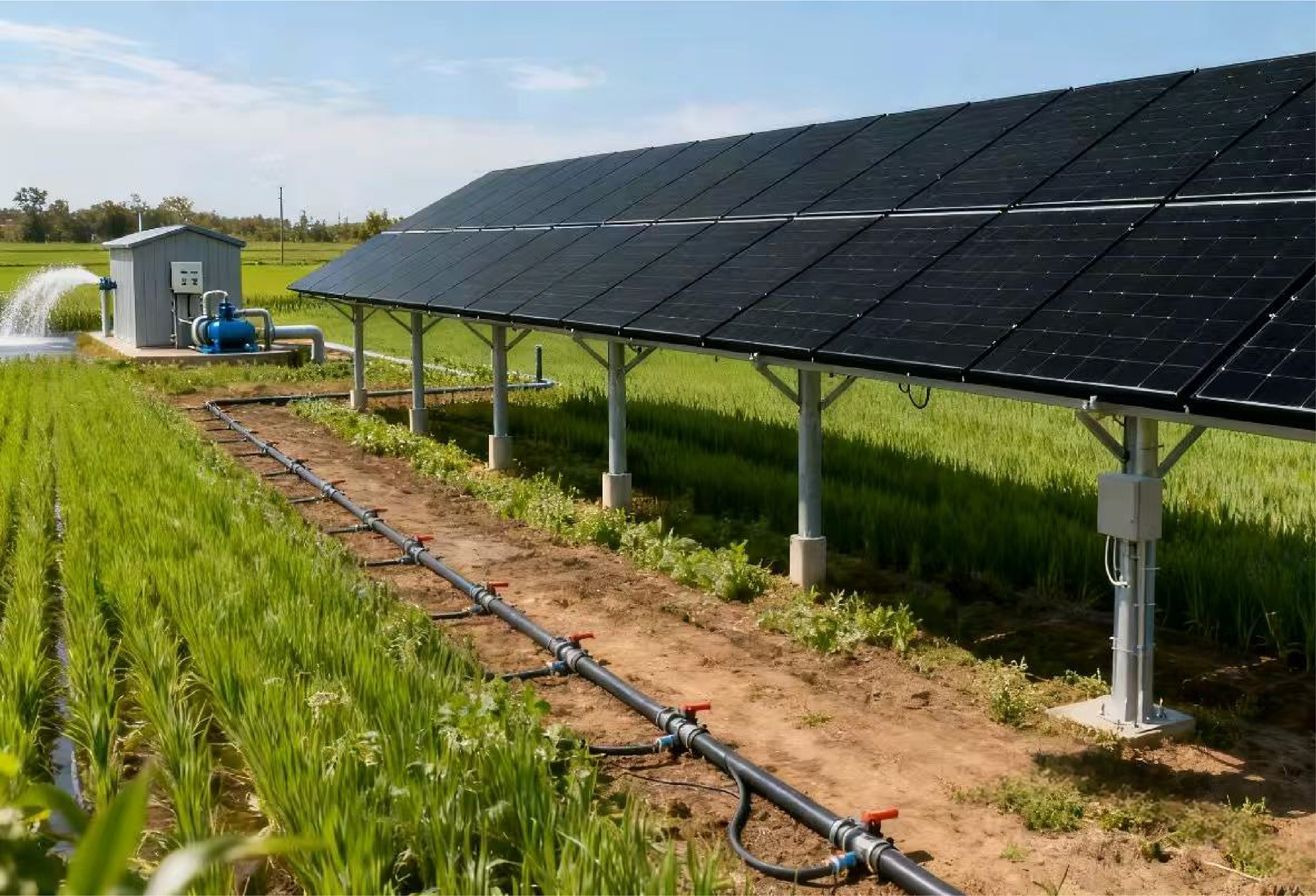

Green Electric Energy Agricultural Irrigation
Farmland irrigation,water source allocation,
worry-free power access,reliable use
